Chimney basket

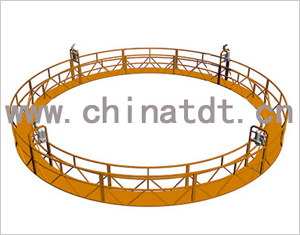

Chimney inner wall hanging basket
Chimney external basket

  This hanging basket is applicable to high-altitude construction for coating and cleaning the inner wall of the chimney of the power plant. The applicable height can reach 248 meters, and the platform diameter can be determined according to the actual situation of the project (the diameter was 18 meters for the customer). Since its establishment, the company has not had major or minor accidents due to product quality problems.

     Features of the hanging basket: it can be arbitrarily divided into parts, which is convenient for disassembly and handling. The size of the working platform can be expanded and retracted arbitrarily, and the expansion diameter can reach 800mm. Lifting point of working platform: it can be flexible according to construction needs. This hanging basket is the first in China and has applied for national patent.

     Power plant chimney basket

     Working platform

  Rated load capacity

 2300Kg

  Rated power

 3KW×3

  Hoist weight  120Kg/only
  Single machine load  2000 Kg

  Rated speed

 7--8m/min

     Lifting basket

  Rated load capacity

 1500Kg

  Rated power

 6.6Kw

  Rated speed

 8--10m/min

     Centrifugal safety lock

  Allowable impact force

 30Kn

  Lock rope distance

 ≤100mm
